From initial mockups, wireframes to high-fidelity prototype. And porting and creating all the assets and objects inside Codesys 3.5 in the initial version. And upgraded to QT using QT Design Studio and Sketch Bridge.
Modular design using Codesys / QT project to reuse components and assets in an efficient way. Due to limitations on CPU, memory, display properties, etc. As well, made it to give the maximum contrast in difficult operational scenarios.

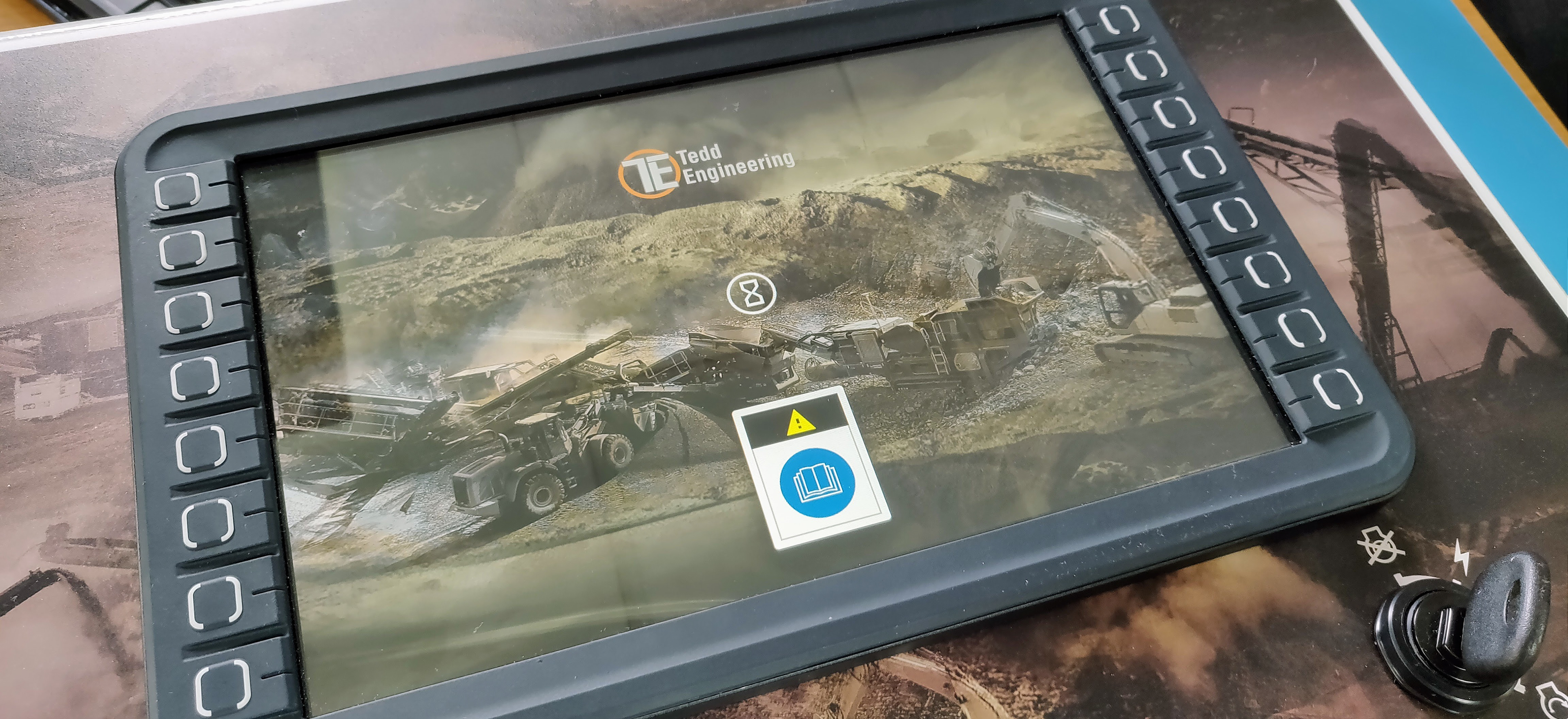

New display runs on a 12'' display with touch screen capability and 16 programmable buttons

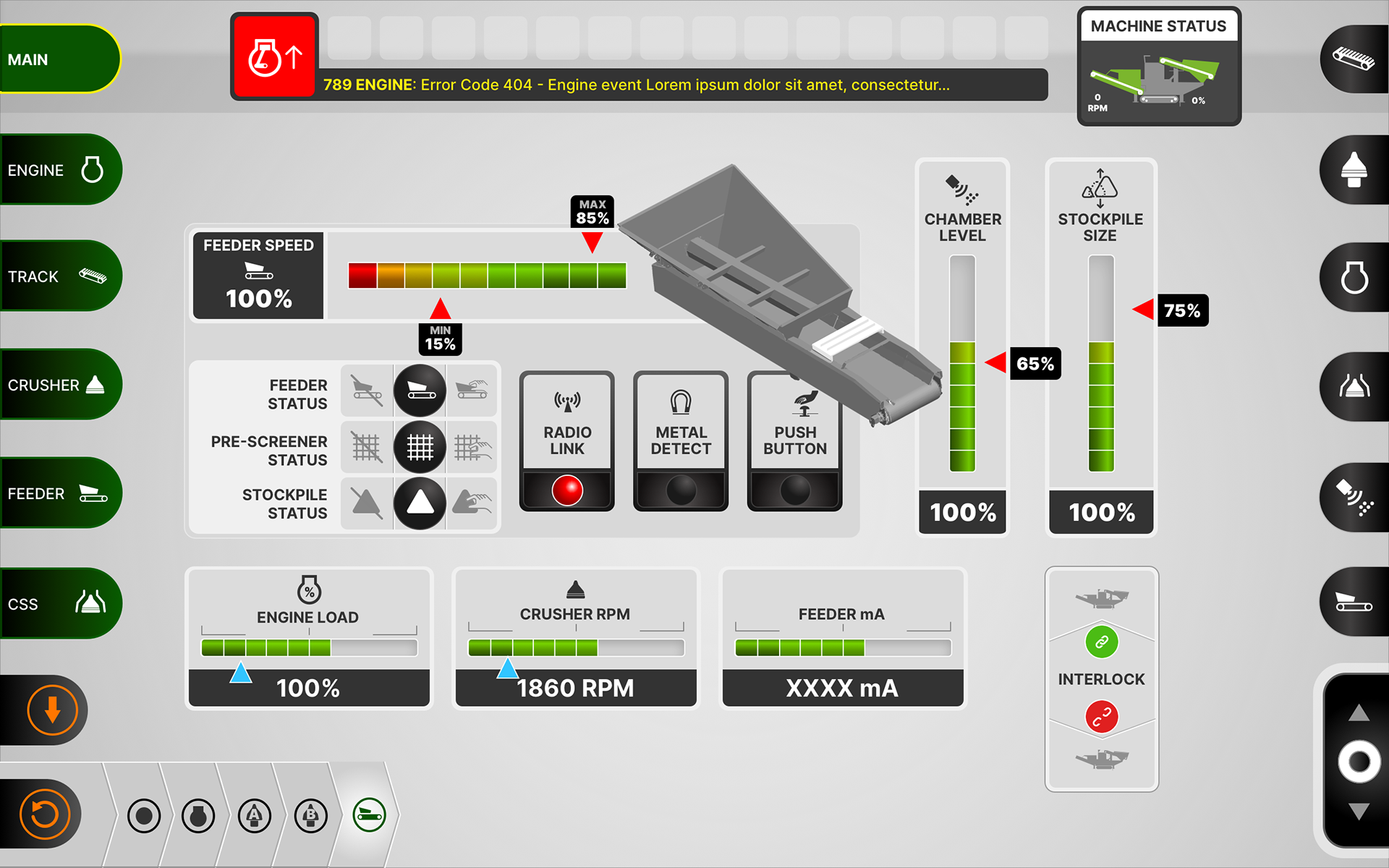

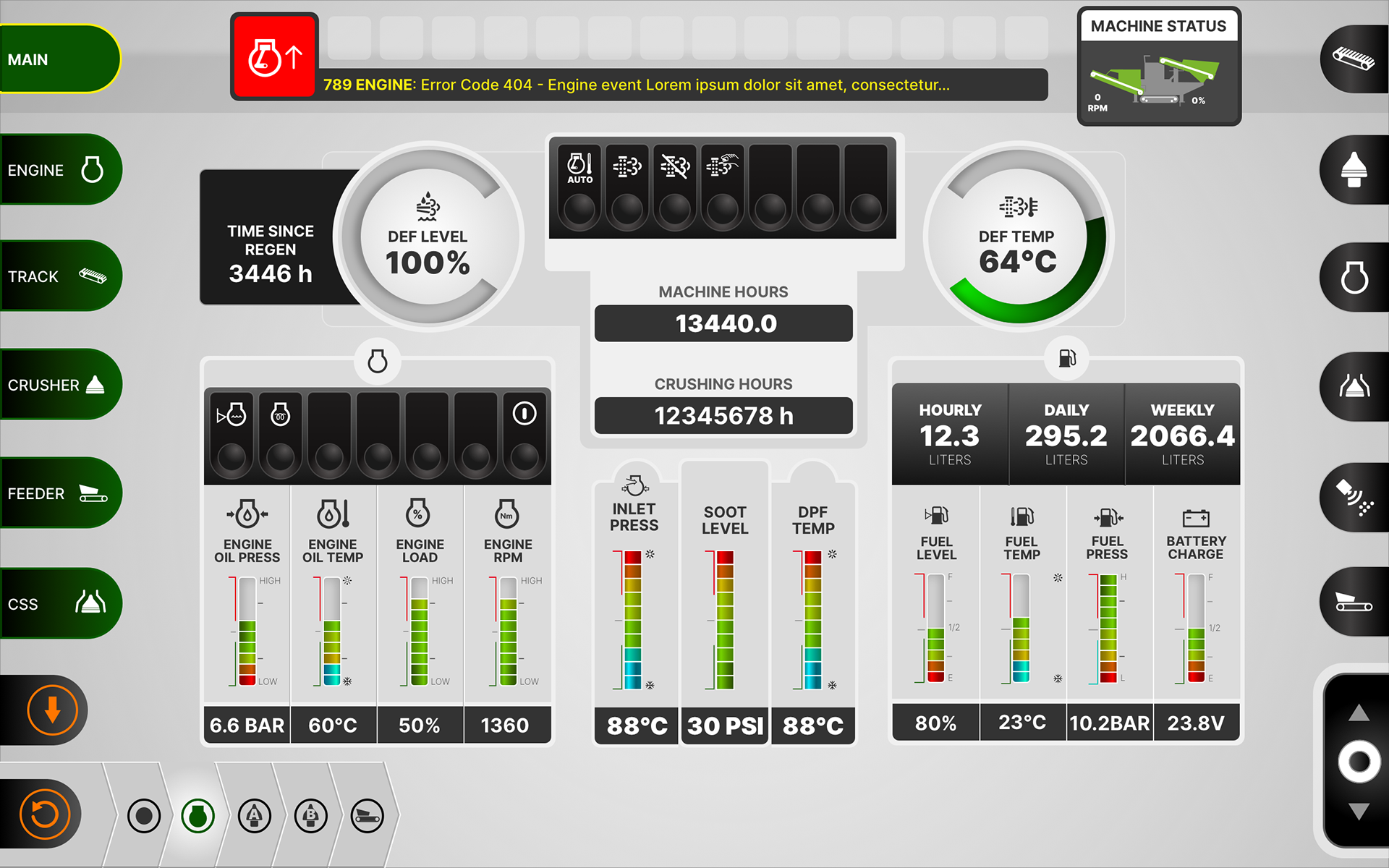

Screen capture

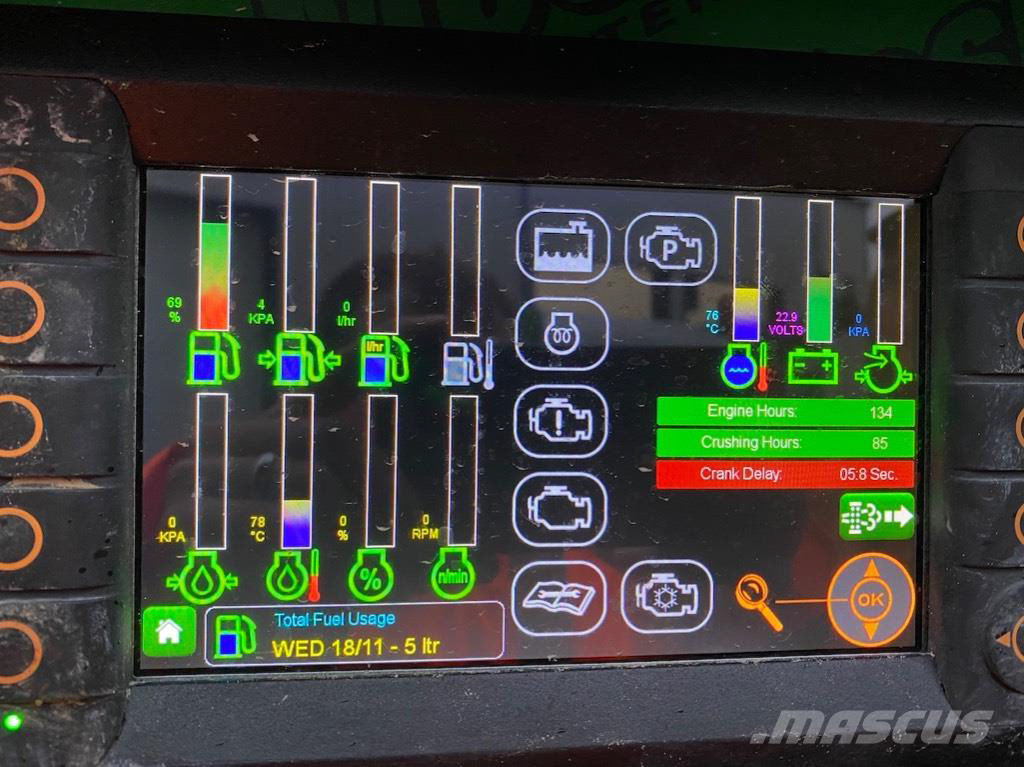

Previous version (to compare improvements) made for a 7" inch display and a 10 buttons input.
Video:
QT component in the making. In this case a gauge / neddle animation as part of the main instrument cluster.
